What is this ignitor???

**bullitt** · 15-04-2008, 01:01 AM

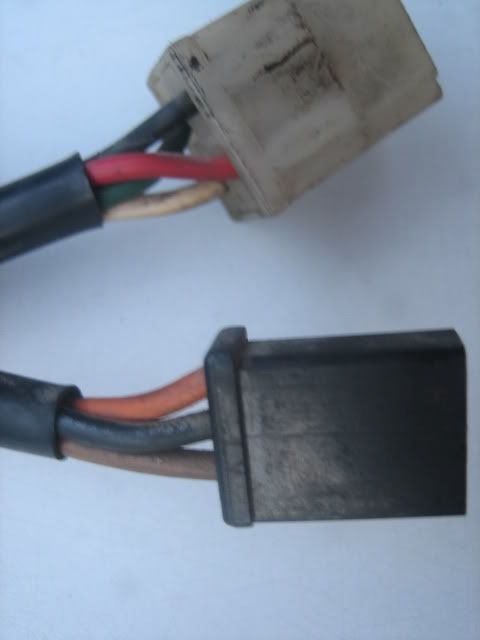

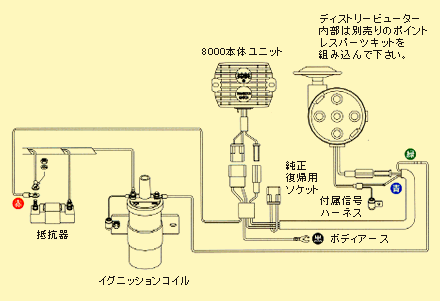

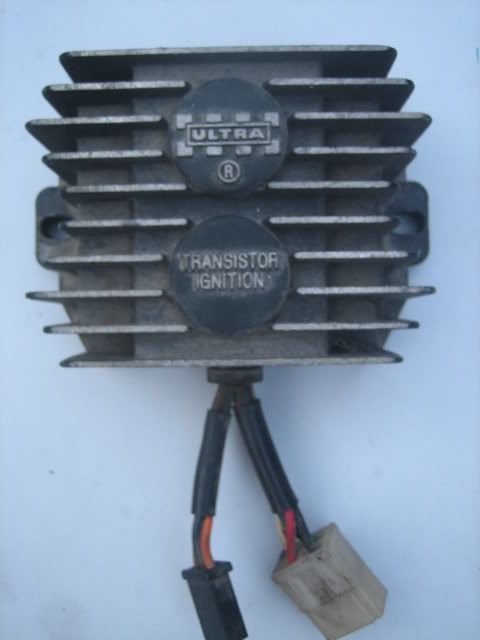

Hi guys, I aquired this piece of ultra ignitor (I think this is ignitor), anybody have any information about wiring, how to connect this, or is it first of all an ignitor, anybody used it or idea how to use it. Please refer to the pictures below. I have no idea how this thing works please shed some light to my doubt.

megat-

**Dimitri** · 15-04-2008, 07:12 AM

jap brand. usually part of an up grade/add on.

e.g my import ae86 that had a black top 20v, which had factory management running it, but used coil packs, had this brand ignitor and "firing sequence determination unit".

maybe google it. try Japanese language/region search. instructions wont be too easy but pin outs should translate well enough if you can dig them up.

**cambelt** · 16-04-2008, 09:51 PM

I have a simmiler unit but red with big CDI power , made in japan . I bet it would kick a mother of a spark being CDI
Dave

**bullitt** · 17-04-2008, 07:46 PM

Do you have any picture of yours mate..i need to know how to rewire this..any help would be great..+rep will be give..

cheers

**cambelt** · 18-04-2008, 09:27 AM

Mines just got 1x 6 pin plug with much the same wires BUT no diagram , it wouldnt be to hard to work out , there would be a reluctor? input ,earth , power, coil neg and pos at a guess. if you open it up you may find more.
Dave

**thechuckster** · 18-04-2008, 12:34 PM

don't forget a tacho output

note: reluctor input will be two wires.

**ViPeR_NiPPleX** · 18-04-2008, 12:52 PM

do you think this would have reluctor input when there isn't any shielding around either connector cables? i'm wondering if it's a switching type like using points as a trigger.

**DX20VT** · 18-04-2008, 08:24 PM

i would guess that the 3 wire plug goes to a digital trigger, like a CAS or optical trigger,
kind like the older luminition type setup,
and the 4 pin would be be power, earth, coil negative, and somethng else,
But, thats all a guess.
