supra mkiv 1jzgte swap help needed

[leeti]

hi is there anyone that could help with these wires. im trying to match the body plugs.
these are the wires i have .
ik1 yellow/black oil pressure gauge =pin 25 orange plug supra low oil pressure switch (output) or pin 33 low oil level switch (output)
ik1 reverse light red/black = pin 36 orange plug reverse light and reverse gear auto tran indecator (output)
ik1 water temp gauge yellow/green = pin24 orange plug dash water temp gauge ground.
ik1 tacho black =pin29 tachometer output from ignitor
ik1 blue/yellow engine light WARNING = pin15 engine ecu W check engine light
ik1 speed sensor red/blue =
ik1 at switch blue =
ik1 VF diagnostic plug=
1k1 green/red TT test plug=
ik1 white L a/t indicator switch=
ik1 green/orange p patern select switch=
ik1 gray/red od2 o/drive switch=
ik1 red/white igw=
gray/yellow T=

ik2 brown groud 4 fuel pump=
ik2 black NSW=
ik2 black/blue NSW=
ik2 brown ground for clusters
ik2 red/green S a/t indecator=
ik2 green CCo
ik2 light blue tems check connector=

ij1 red/yellow ELS idle up external load input = pin 32 orange plug ELS elec load sense
ij1 yellow/green engine light /battery light= pin 34 orange plug alternator L charge warning light output
ij1 black natrural start switch=
ij1 black/white starter=pin23 orange plug ignition switch power
ij1 red/green FPC Fuel pump control =pin4 gray plug fpc control output
ij1 pink SP speed =
ij1 green fuel=
ij1 black/red fuel main= i put direct to the batt

ij2 black/white starter=
ij2 red idl1 primary throttle tps
ij2 pink D1 fuel pump control relay speed sensor= di fuel pump diagnosticc indecator
ij2 brown/yellow fp control=
ij2 green/white STP stop light switch=pin11 gray plug STP stop light switch input
ij2 white/red S2 speed sensor=
ij2 black/yellow 12v switch alt to charge=
ij2 black switch power ignition
ij2 green/black progressive steering + =
ij2 green/black progressive steering - =

yes im using the supra na gearbox for now till i no it will all work then probly later in the future probly go manual
thanks
lee

[midnight_purple_GA70]

search for supra in the "wiring thread for all vehicles" there is a good pinout of the orange plug and other related plugs in it...

or probably checkout wilbos wiki as it probably has it all there also

[midnight_purple_GA70]

if you have an email address i can email you the pdf that has the pins all mapped out for you

[wilbo666]

I'm sure I linked you to the JZA80 2JZGE wiring in the past?

wilbo666 / 2JZ-GE JZA80 Supra

Cheers
Wilbo

[midnight_purple_GA70]

lol yeah im sure you have... either way youve now linked him to it all...

problem solved...
again...

[leeti]

yeah you did thanks wilbro. i have written them down and tried maching them to the 1jz plug wires.
iv connected a few of them but im not sure. when i first started to do the wires i could get it running but because iv been trying to do the other wires i have forgot whitch wires start it . its proper boxed my head in 4 months now and there is no 1 round my area that can help me every garage i go in thay say wooow no idea.
thanks lee

[leeti]

well i have been to nearly every auto electricion in my area and the wiring thay recon is well over there head.
dont no what to do now i am actually thinking of given my project up
is there any last hope that anyone could guide me through it i dont mind paying for ur services. thanks again lee

[midnight_purple_GA70]

in order to help you without seeing what you have done i need to understand 100% what you have done already and how the car came to you etc etc

i am guessing it is a naturally aspirated jza80 and you have removed the engine to replace it with a 1jz...

i need to know exactly what the engine came from
what gearbox you plan on running and where it came from
what wiring you have touched/cut/removed/replaced
what wiring came with the motor

from there i can start to tell you wires to connect to get it running

and then from there what wires to get various gauges etc working

[leeti]

i got the car a while ago and the engine blew. it is a 1993 supra na .
so i had o get a engine and the only 1 that came up was soarer 1jzgte and the car was a h reg1990.
so i put the engine in and joined it to the supra na gearbox.
and the plugs near the fuse box pluged straight in.
with the engine i got the harness was uncut and the harness goes into the passanger side footwell i have cut the plugs off whitch i think are ik1,ik2,ij1,ij2.
i connected the thick red and black wire to batt and the 2 black/orange to the black/orange on the gray plug on the supra plug. and black/white to black/white on the supra plug and connected the nsw black/white to supra black/white. last night and it struck up sounded abit up and down idleing if that makes any sense. im going to see if i can get a decent camara today and i will take sum photos and put them on.
thanks for the reply lee

[midnight_purple_GA70]

so is it an auto or a manual?

and what ecu are you using to run the show?

[leeti]

its a supra auto box. and the ecu and ignitor came with 1jzgte.
and my supra loom apart from the body plugs was scrapped to pay towards my 1jzgte but wish i never scrapped it now.
so yeah the 1jz ecu and supra na auto box.

[wilbo666]

Taken some pictures of what you have / where you are at yet?

Cheers
Wilbo

[leeti]

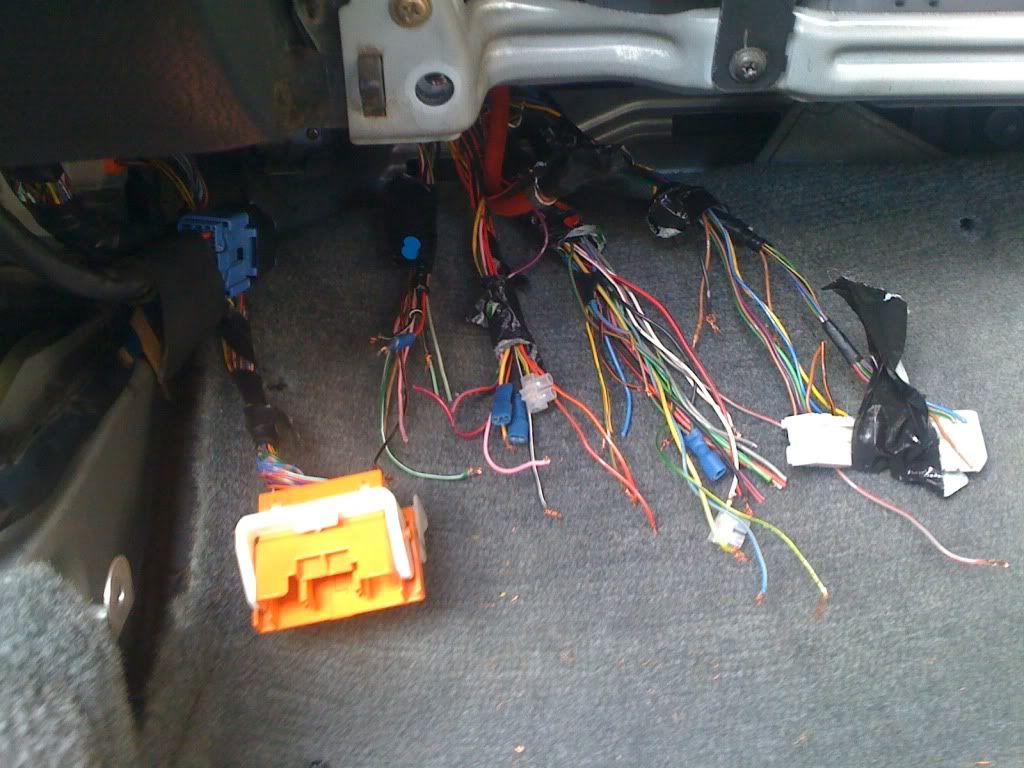

heres my wires on passenger foot well
[IMG][/IMG]

[leeti]

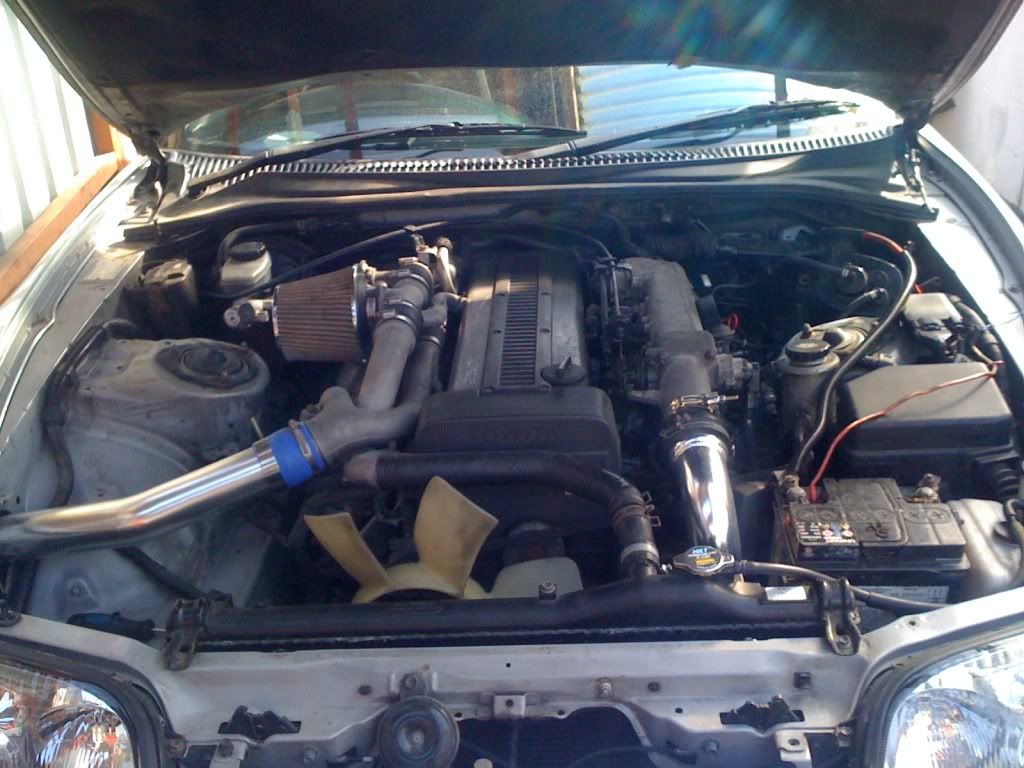

And this is the engine in my mkiv.

[IMG][/IMG]

[IMG][/IMG]

[wilbo666]

OK,

I'll be honest, that looks hard / difficult.

What happened to the JZZ30 engine loom plugs, the ones that should be in the passenger foot well?

Cheers
Wilbo
