18RGEU Plumbing Q

[zuludan]

Does anyone have a map of hoses and lines for the 18RGEU, I have not idea where all the hoses go and end up. Vac Lines and Etc... I can not find any good pictures of the 18RGEU......

Any help appreciated.

[o_man_ra23]

Check the 18RG tractor thread, there were photos put up by the Witzl quite some time ago with full explainations.

[zuludan]

See below double add

[zuludan]

I have looked at threads but my ECU is very different to the ones pictured.

Any help would be appreciated

[o_man_ra23]

What ECU are you running?? Most modern ECUs can dispense with a lot of the factory stuff (which was because the ECU was based on resistors etc to determine a 555 timer frequency etc)

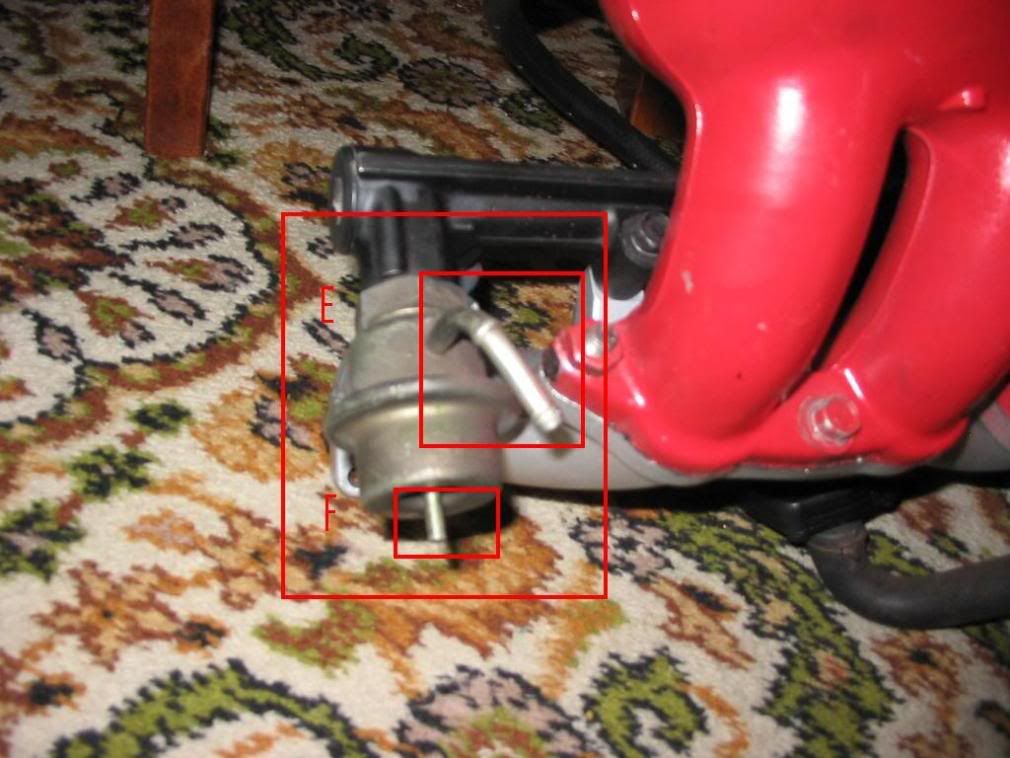

First photo:
E fuel return to the tank
F goes to plenum

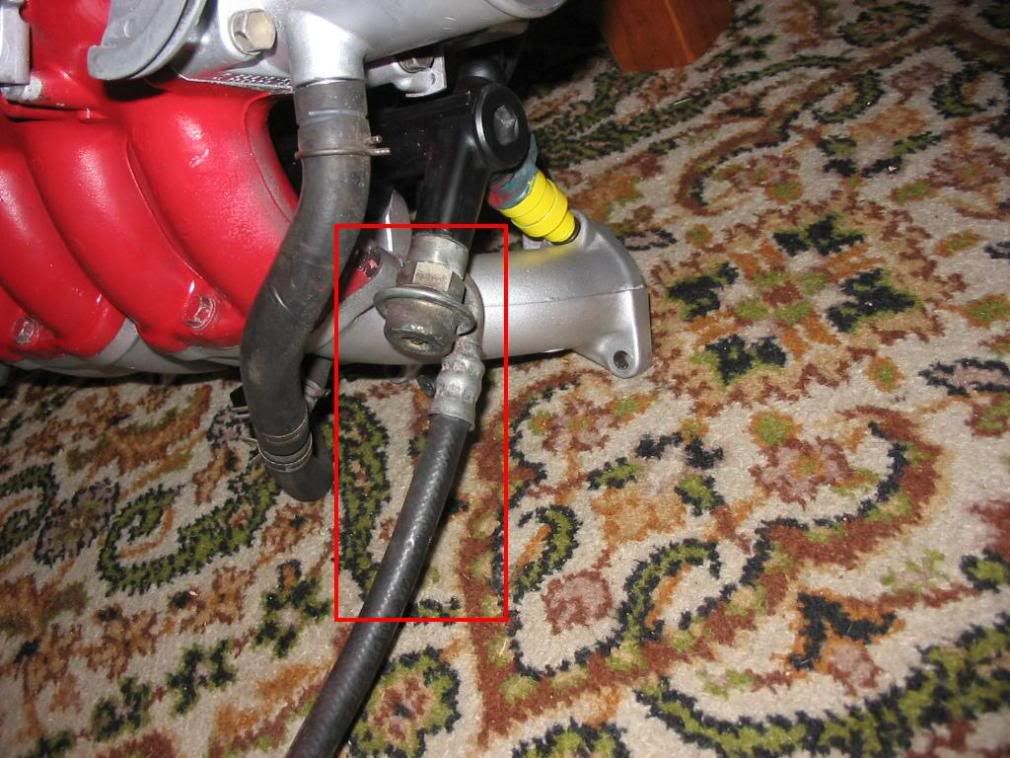

Second photo, fuel supply from the pump

Third photo, I am blocking off for mine as it won't be necessary

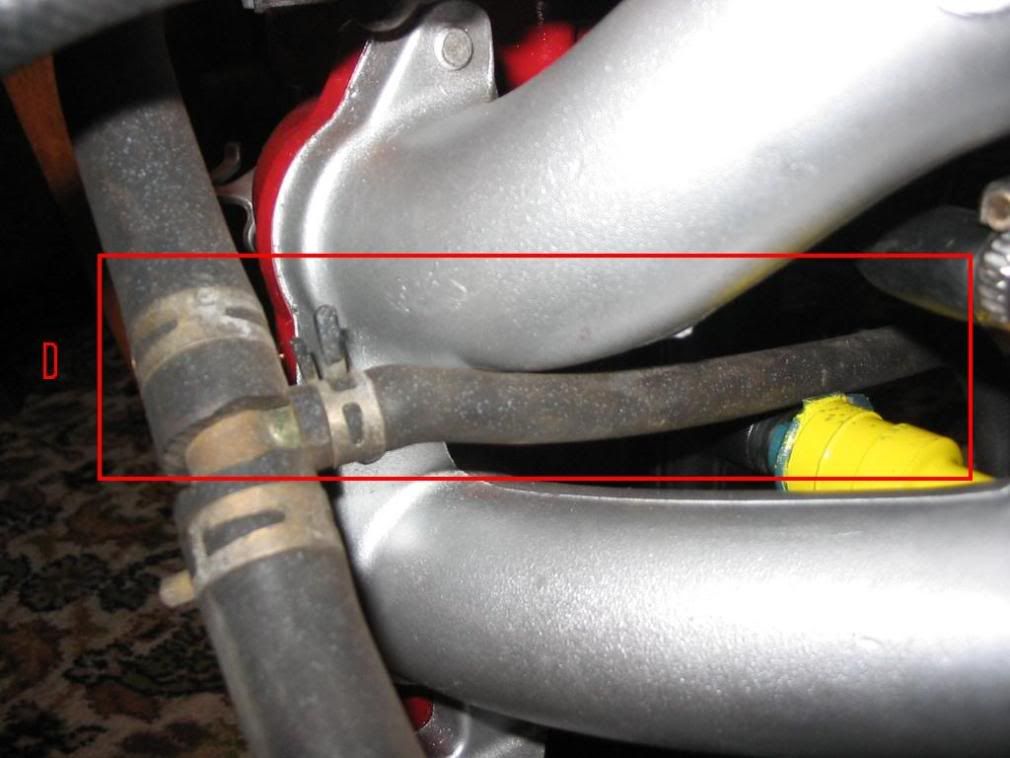

Fourth photo, they are explained I believe in the 18R-G thread

Fifth photo, goes to the throttlebody (either water outlet, the other water outlet on the throttlebody goes between runners 1 and 2 into the inlet manifold flange) I will not be using this on my car.

[zuludan]

Plenum ?????????????? What is this ....

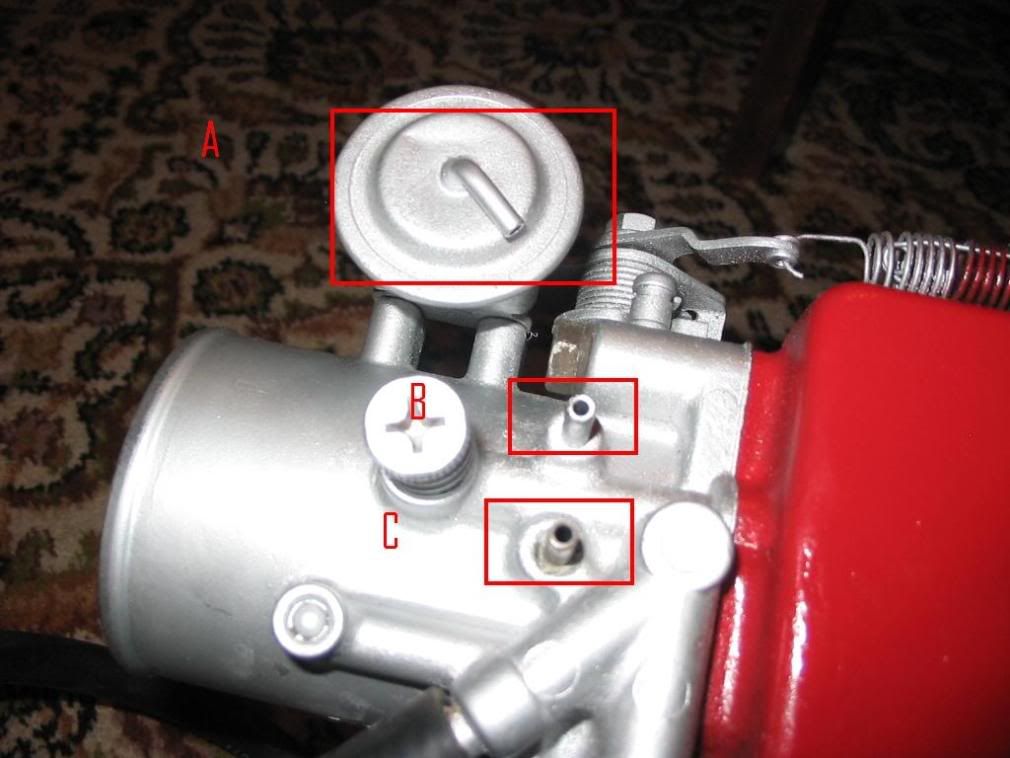

Any ideas on A B C..

I am running Factory ECU. Also there are two hose outlets on the water temp housing where do these go ????

[o_man_ra23]

can't tell you about factory vacuum plumbing, I am ditching all of mine. Plenum is the big box between the throttlebody and the runners. It has EFI embossed on it.

[zuludan]

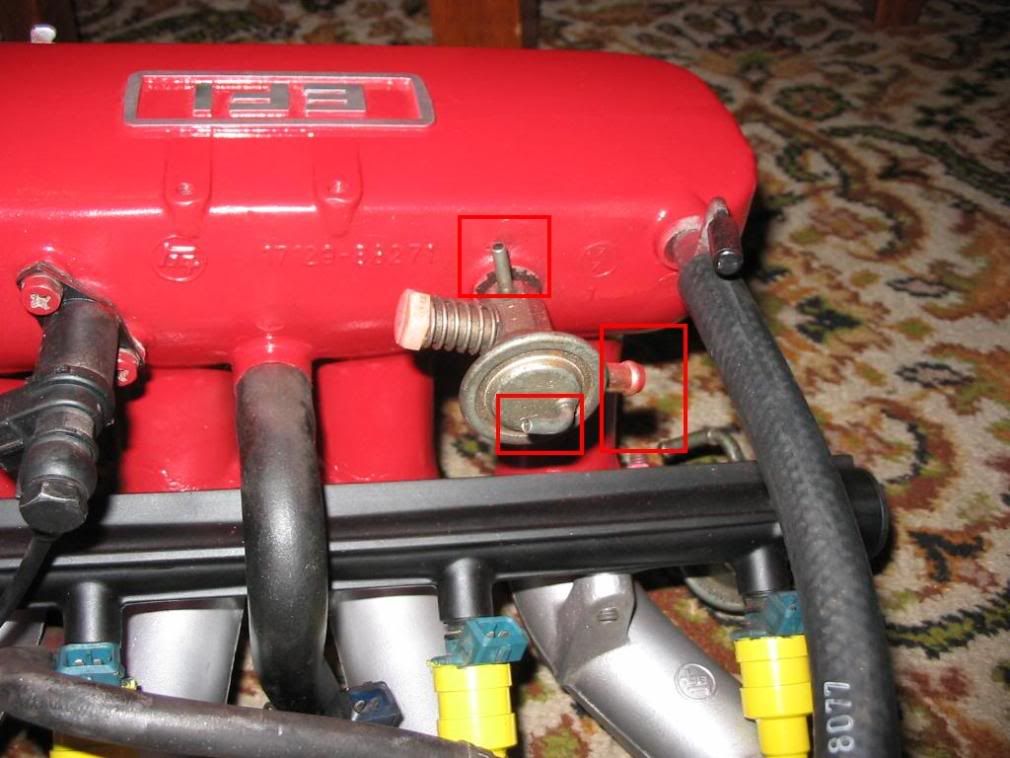

Where does F go on the Plenum. I Have worked out C it goes to water housing and the other side goes to the dizzy.

[Spectre]

A little bit of searching goes a long way...

http://www.toymods.net/forums/showth...&highlight=18R

This thread, turns up these diagrams which should help you piece it all together!

http://www.users.on.net/~csharman/docs/18rgeu.pdf

This should be helpful. Id reccomend saving and printing that PDF file.

[Spectre]

[zuludan]

Thanks Guys, Thanks Spectre for pics
