SC12 Dimensions

[mynameisrodney]

Hi All,

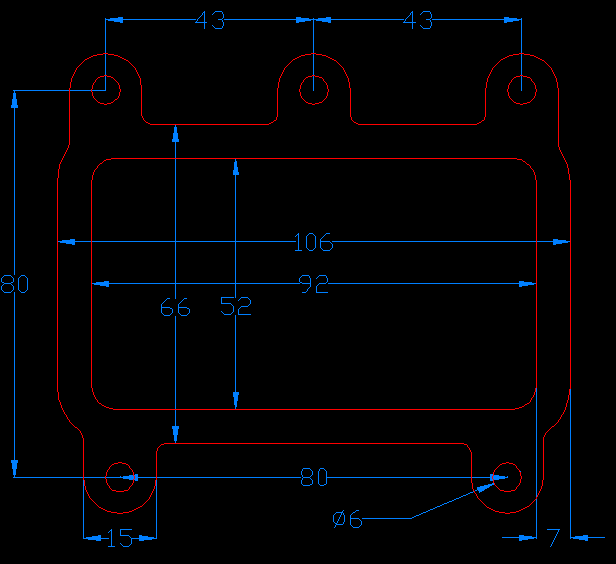

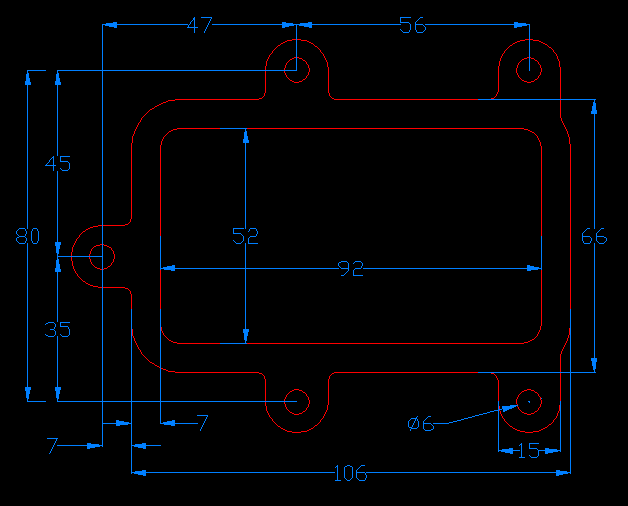

I'm measuring up my SC12 at the moment in order to start designing some mounts, so I thought I'd dump all the measurements up here as I produce them. At the moment I've only converted the flange patterns from my sketches into CAD drawings. The plan is to do the whole charge so I can mock up where it will sit relative to the engine and adjust it before making any dummy set ups. I'll upload the CAD files too so you anyone that needs them cut can just take them to be milled or laser cut.

Cheers,
Chris




SC12Flanges.zip


EDIT: Sorry, forgot to add, the internal rectangle is the opening in the SC body. You don't want to cut this line, it is just there for completeness of the diagram. It is in a seperate layer of teh dxf file so it can be turned on and off individually.
