MA70 Turbo A ECU pinouts

[CrUZida]

Anyone got em?

I know they'll be 99% the same as the other grey plug 7MGTE ecu's, but the whole, AFM vs MAP sensor I don't know.

[wombat]

go to this site
http://www.cygnusx1.net/Supra/techtips.aspx

this has the technical serive manual online in full. and also wiring diagrams and parts cat.

have a look around and you'll find it.
great website

[CrUZida]

The Turbo A is Japanese only, and to the best of my knowledge the cygnus site only has USDM manuals on it.

[wombat]

fair enough. thought I'd give it a shot.

might have it. but yeah I'm a new MA70 owner, so just learning

[cambelt]

AFM vs MAP there all AFM from my memory.
Dave

[Jasper]

I should have access to an archived photo tomorrow that will reveal all...

[EldarO]

AFM vs MAP there all AFM from my memory.
Dave

Turbo A MA70's were MAP sensored.

only 500 7MGTE's ever were (from factory), and they came in those cars.

Elmo.

[CrUZida]

I should have access to an archived photo tomorrow that will reveal all...

Thanks for that Jasper, just thought I'd give the ol' Toymods a try just in case.

[whatthe?]

The Apexi SAFC manual has pinouts for MAP, knock, revs and power if that's all you need to know... Diagram 5a IIRC

[CrUZida]

All I need are pinouts for the MAP.
I'd put money on everything else being the same as the later gen 7MGTE's (scary though).

I'll look up the manual now.

[CrUZida]

Looks like only 1 wire is different.
The KV setup uses a KS pin for the KV output, where as the TurboA would use a PIM pin below the KS pin for the MAP output.

[whatthe?]

Fuck I'm good

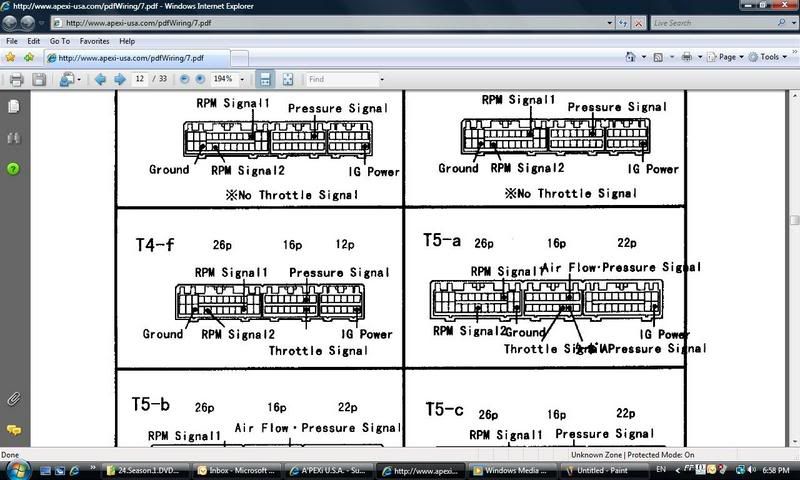

T5-a

[CrUZida]

If only I could read the word under Throttle Signal???Pressure Signal

[whatthe?]

Sheesh, dont want much do ya

[CrUZida]

Unfortunately its the only one there with both AFM and MAP on the one diagram...
