Thursday, 7 May 2009

Been busy working on the battery box, this is a fairly complicated design with several steps to fit the 3 rows of cells neatly in the rear seat area, while avoiding cutting into chassis rails.

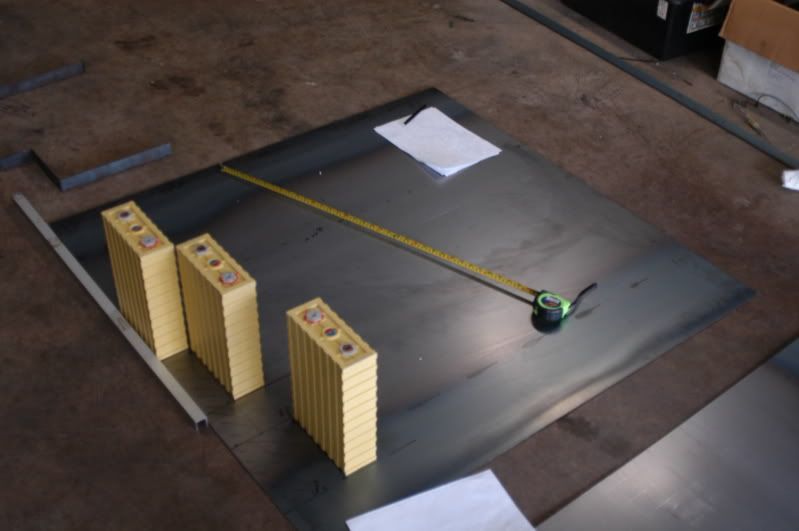

Planning the cuts & bends

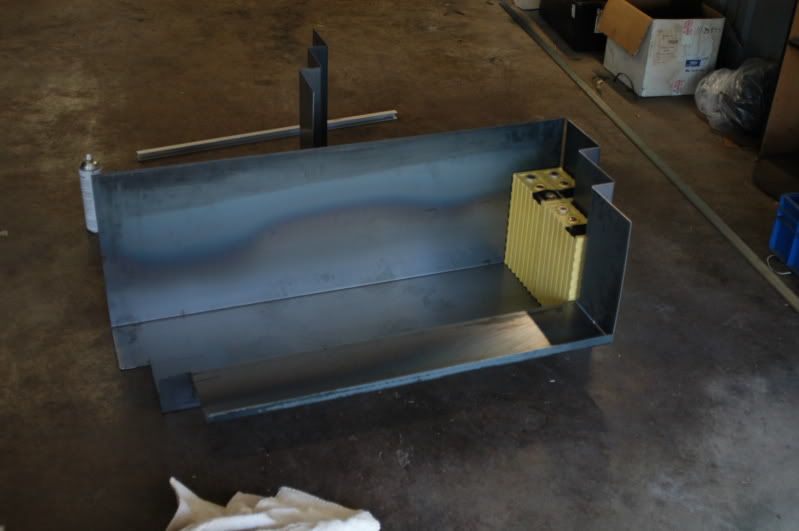

Base and sides bent up

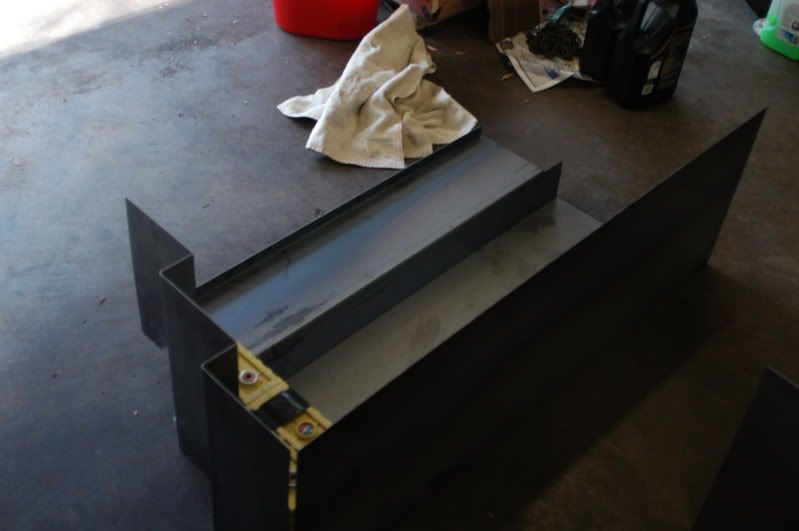

From another angle, few holes to fix.

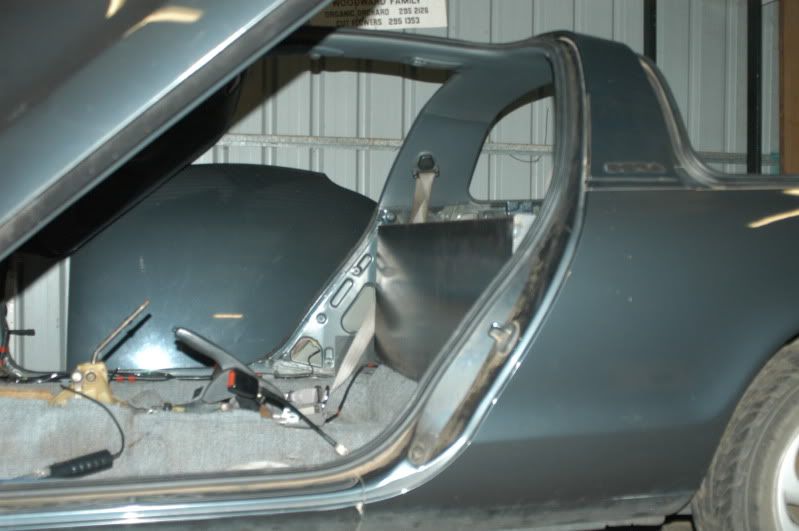

We had to remove part of the centre tunnel, as it was a little tall.

Holes


The battery box will also include 2 fans which will vent out the bottom of the seat wells.
Still need to find a couple of nice large low profile 12v fans, some small thermo fans or server fans should do the trick.

More pic's of test fitting to come!

-A

[TERRA Operative]

Some nice 120mm Panaflo etc. fans will do the trick, and be quiet too. Get ball bearing versions for long term reliability.

[Mr Ed]

Wow! Awesome project!

subscribed

[VA61DETT]

Dash is out, Battery box is in!

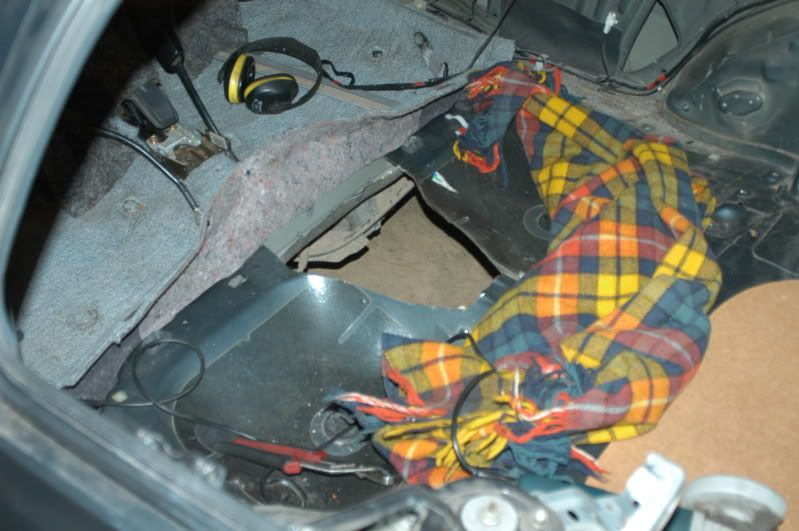

No dash:


Hello Batteries!

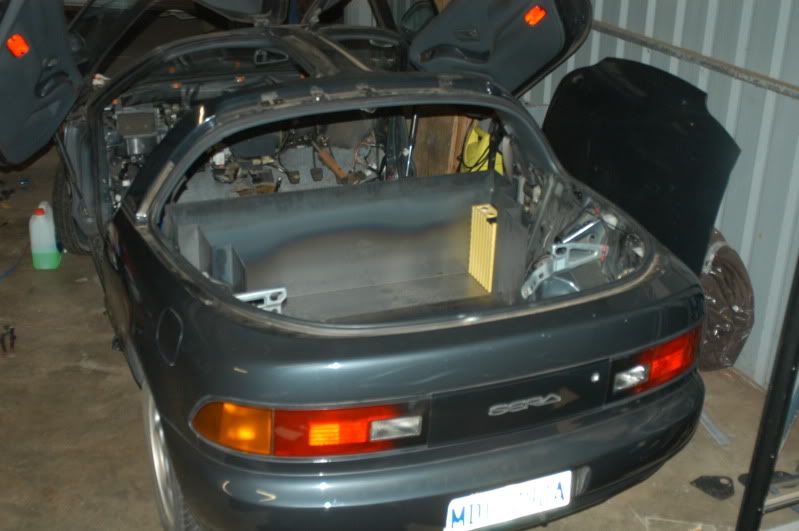

Box test fit rear:


Side view


The box is a little far forward at the moment, still need to do a little manipulation of the floor pan & edges of the box.

Have sent modified accessory pulley off to engineering shop for keyway cutting, hopefully will be ready for the weekend & can move on to mounting the accessories and additional engine mounts.

-A
