Updates!
Friday, 30 October 2009

Soo close to a test run!

Been very busy over the last couple of weeks, here is the current addition list:

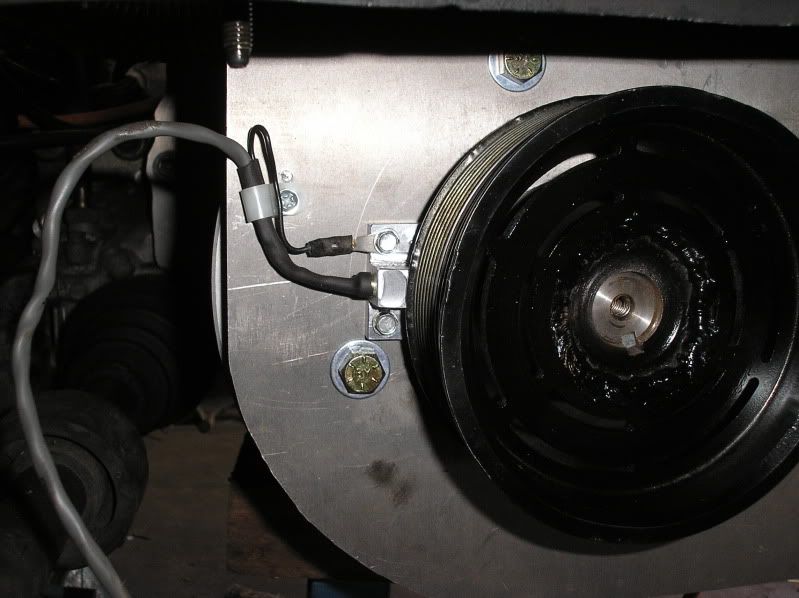

Built & installed crank angle sensor, basically just a magnetic chopper which will provide a tacho output & allow the speed controller to detect ‘stall’ conditions.

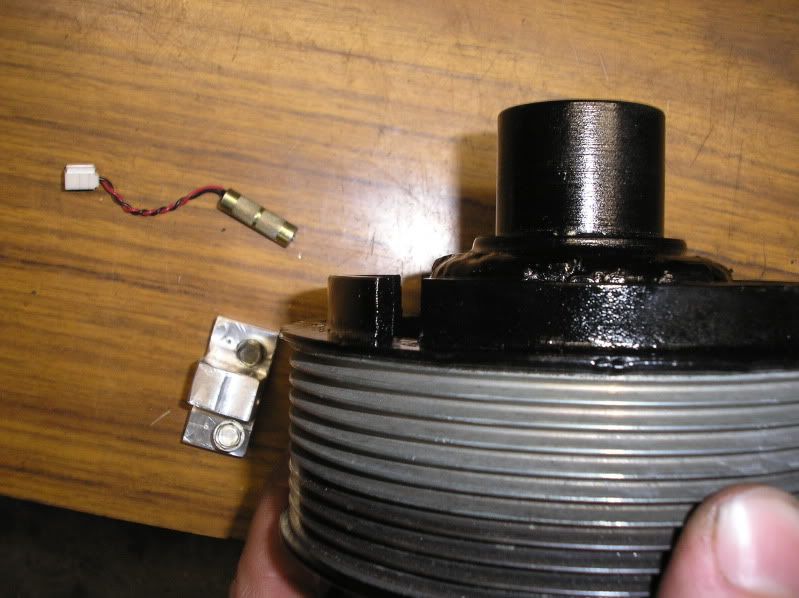

Modded pully with cut-outs & magnetic pickup (scavenged from an old industrial printer)


Installed Assy

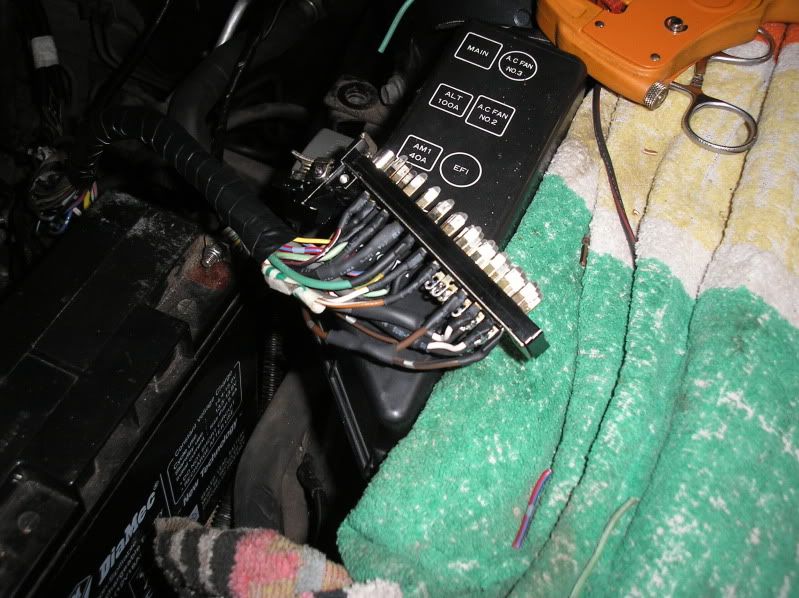

All the low voltage / signal connections to the Zilla go through a single modular connector (ex-aircraft comms)
The vehicle side is completed.

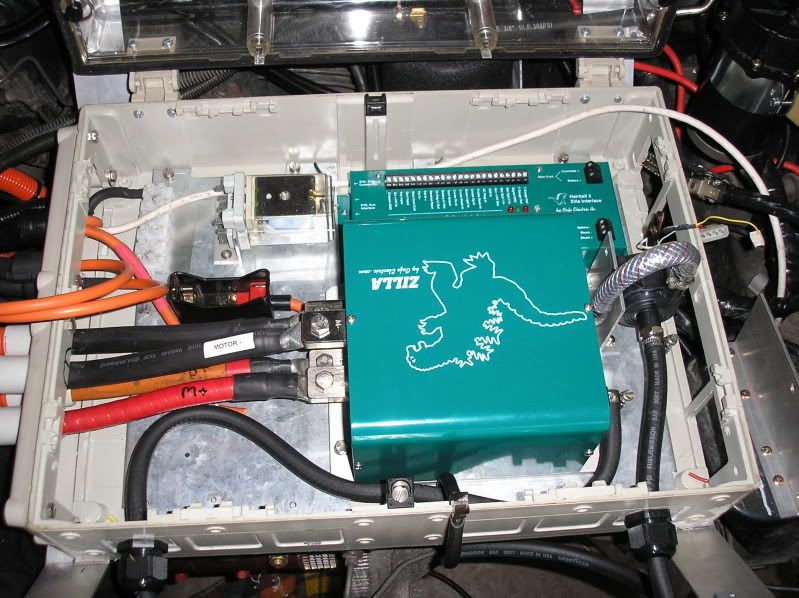

Zilla connector!

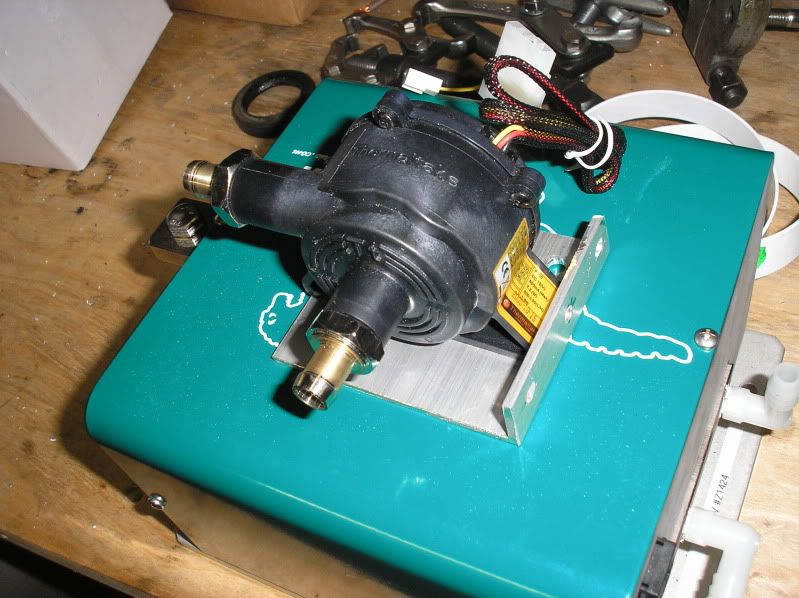

The Zilla controller requires a small water cooling rig to keep everything happy, I picked up this nice little Thermaltake jobby, it pumps about 500L / hour @ 12V DC.
Slight mods to the fittings & I was in business.

Pump:

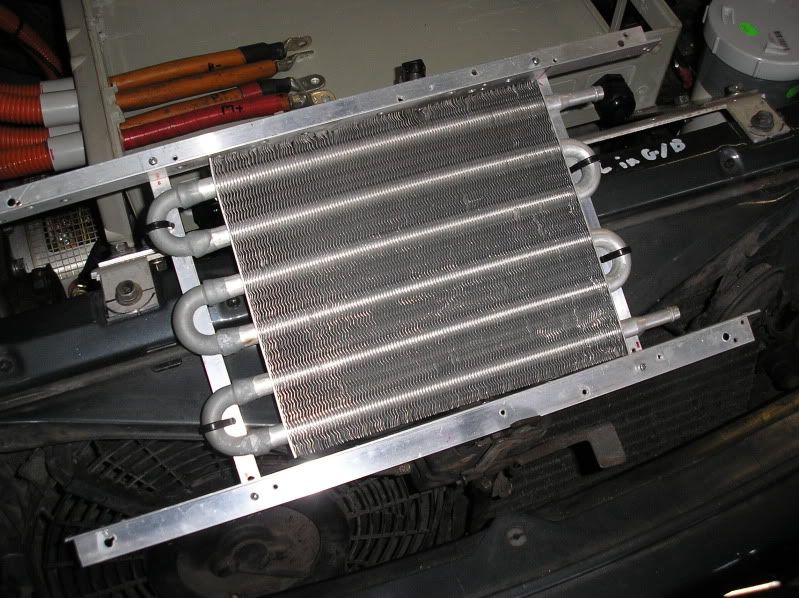

To remove the heat, we have a nice little transmission oil cooler, (E-bay special).
This will be bolted in behind the A/C condenser, If need be I will add some thermal monitoring & control of the condenser fan to assist air flow.

Cooler, Note re-cycled ally from my old water cooled PC rig from a few years back.

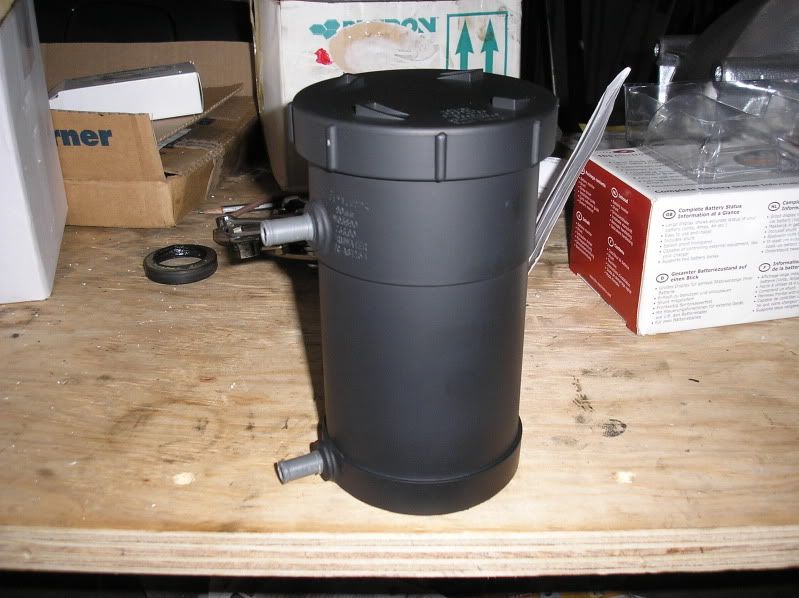

I also made up a nice little coolant reservoir, I couldn’t find a suitable tank, so PVC it was!
Couldn’t find fitting in 3/8 either… so made them too.
Bit of black paint, smick as!

Tank


Nice shot with all the bits installed, the clear pipe is for a quick visual check on the state of the coolant.


Clamped up all the hoses, n gave it a test run with some distilled water.

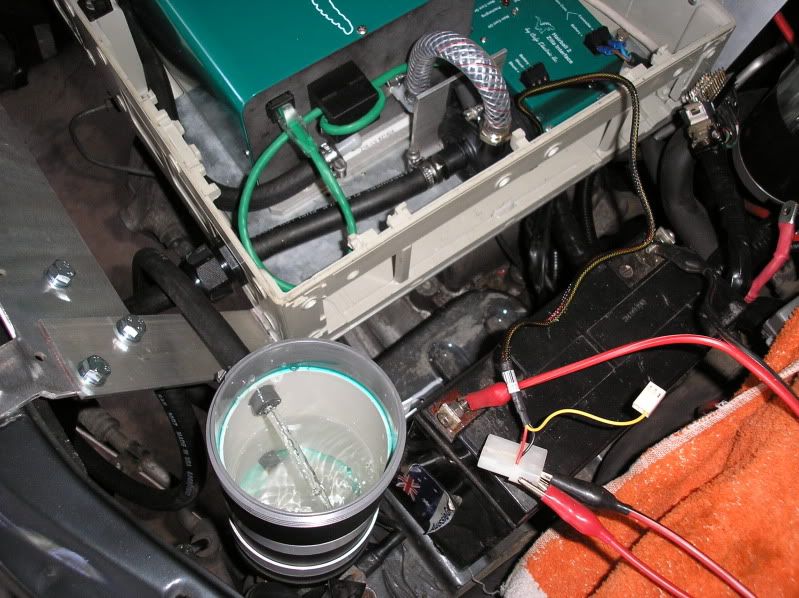

Coolant system test


No leaks whoo!

TBC…

[Draven]

so very impressed

[VA61DETT]

Update Continued…

I purchased a complete vacuum system from evsource.com, this consisted of a freekn heavy direct drive 12v VAC pump, 2L air tank, pressure switch & a bunch of pipes, relays, fittings etc…
It was fairly straight forward to install, pump is a bit noisy, but works good (may get rubber mounted later).
The vac switch means the pump only runs as required.
Under testing I found about 10 seconds every 2 complete pushes of the brake pedal (once the initial vacuum is pulled).

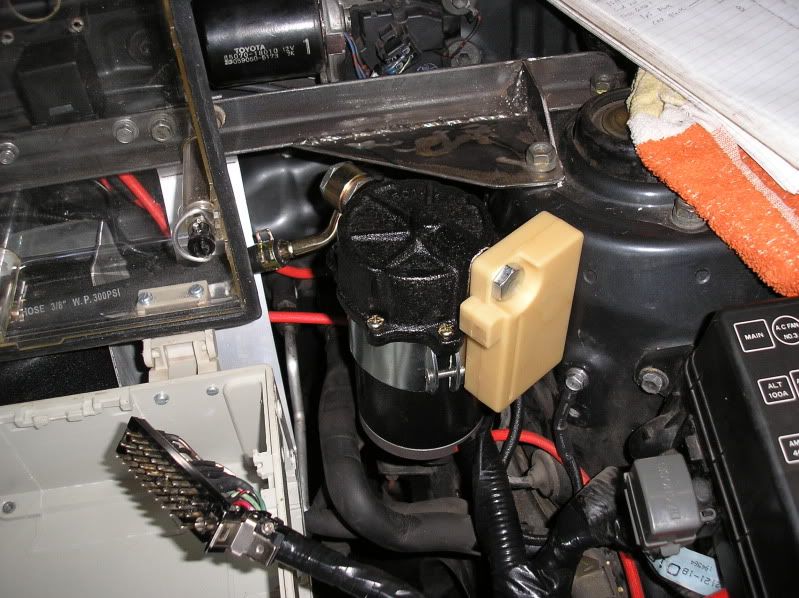

Pump installed, just off to the left edge is the textured black vacuum tank.


Righty, fun pedal.
The Zilla is accepts a 0-5K input for the throttle, valad ranges are <150R for %0 throttle to >4.5K for %100 throttle, over 7K will flag an error.

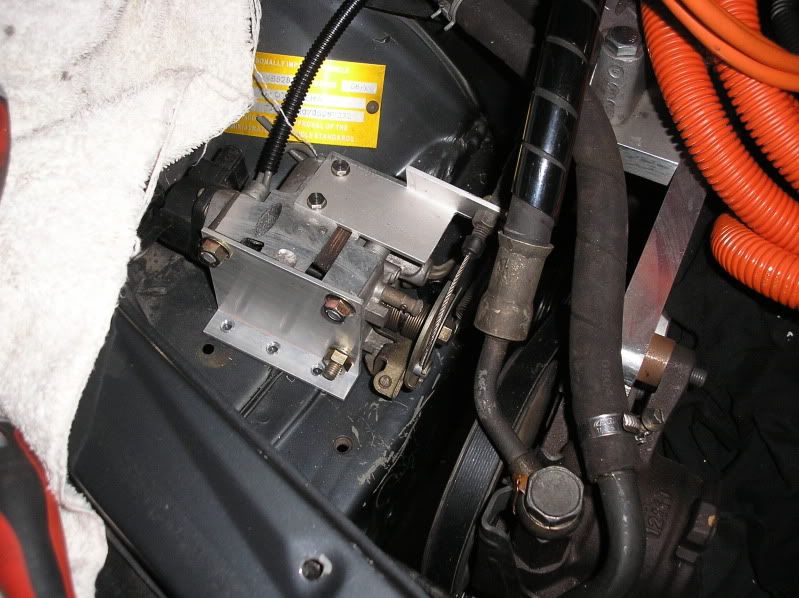

Conveniently this is very close to Toyota TPS units, so to save the hassle I used a spare 5M throttle body and sensor, (I think I accidentally turfed the sera one)
A little bit of modding the TB and we were in business!

Not pretty, but dose the job!


Onto the instruments,
The all important battery fuel gauge will be installed on the dash.
Being a difficult curved shape there is no convenient mount point, so I made up a small 3 leg bracket which will be screwed down to provide a flat point for the gauge, the lot will be painted black or grey to blend in nicely.

Gauge mount under construction


Test running,

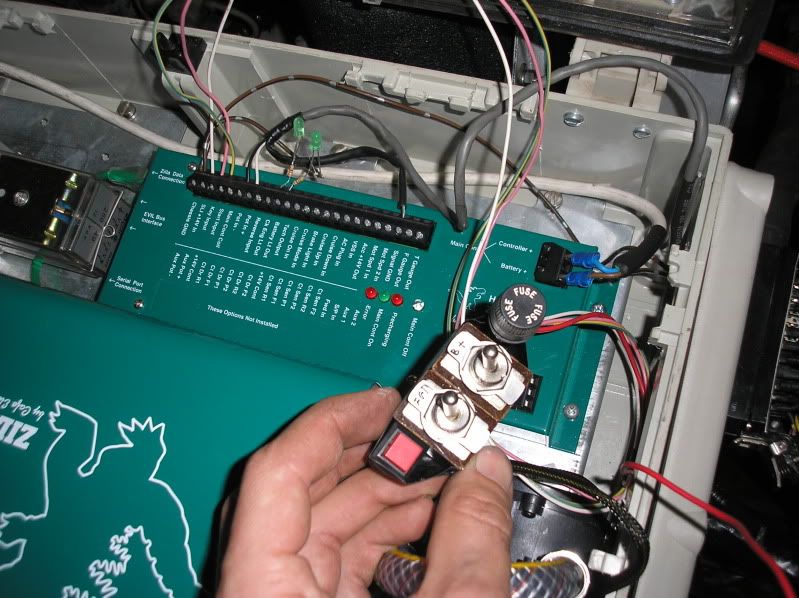

Before I go the effort of putting the dash back in, I rigged up a ‘terrorist’ spec ignition system.

CLICK, CLICK, ?


Look for the mushroom cloud over the hills some time this weekend!... (hopefully not…)

That’s all for now!
-A
