4agte turbo oil drain

[cartledge_uk]

I'm helping out a friend doing a 4agte conversion and just want some advice.

What are you lot doing with regards to oil drains?

The manifold we have hangs to low this is a test fit



So with regards to oil feeds, to get a good drain out of the turbo the pipe goes too low in the sump so oil will pool in the bottom of the pipe.

Do you thiink this will be ok? or do you have any other suggestions?

[legend]

try a 90deg fitting on the turbo that would give u a better return

[feral4mr2]

try a 90deg fitting on the turbo that would give u a better return

indeed. you dont wont the return any lower than the oil cooler banjo fitting hole you see in your sump.

[roadsailing]

mount turbo higher up? what manifold is that?

just try to get as steep an angle possible, i wouldnt put a 90 degree bend on it personally.

and this is a FWD right?

[feral4mr2]

it looks like the cast one's that have been on e-bay, aparently re-cast with the turbo flange on them. or the owner could own a original HKS cast manifold.
but i say (as cartlege mentions) that the turbo is mounted too low and will have oil return issues no matter what you do with the oil return.

i have close to a 90 degree bend on 2 of my turbo's straight out from the oil return.

cartlege is a aw11 owner, i would figure this could be going into another aw11..... i hope.

[caibs]

pretty sure you can get 45 degree ones too? my drain has a 45 on the sump end so its a nice progression. turbo is higher up tho so slightly diff situation.

[feral4mr2]

or you can build what ever angle you want.
also i would clock the turbo center a little to face it back towards the sump, might help a bit.

["Z" UTE]

Gunna be real biatch running an exhaust of the turbo mounted like that

cheers Chuck.

[oldcorollas]

single small scavenge pump to pull oil out of the turbo? ie, PS pump or similar?

[DOHC20]

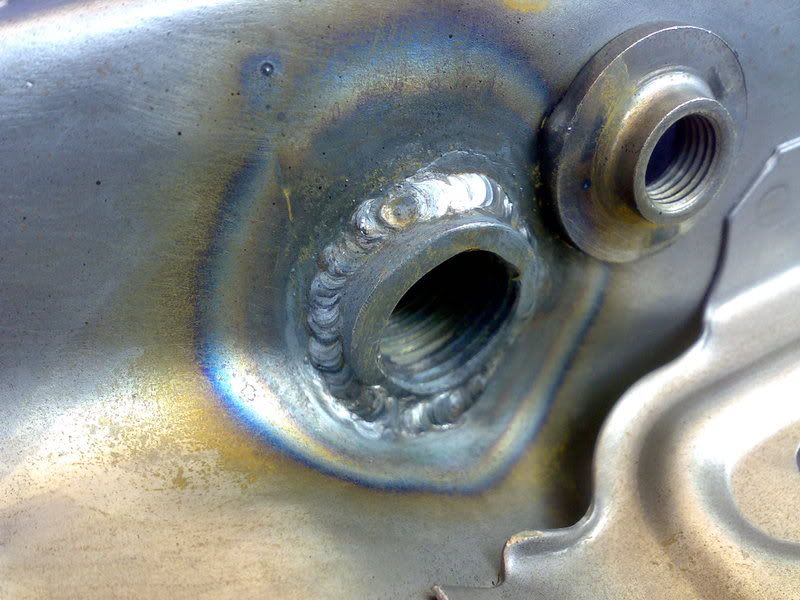

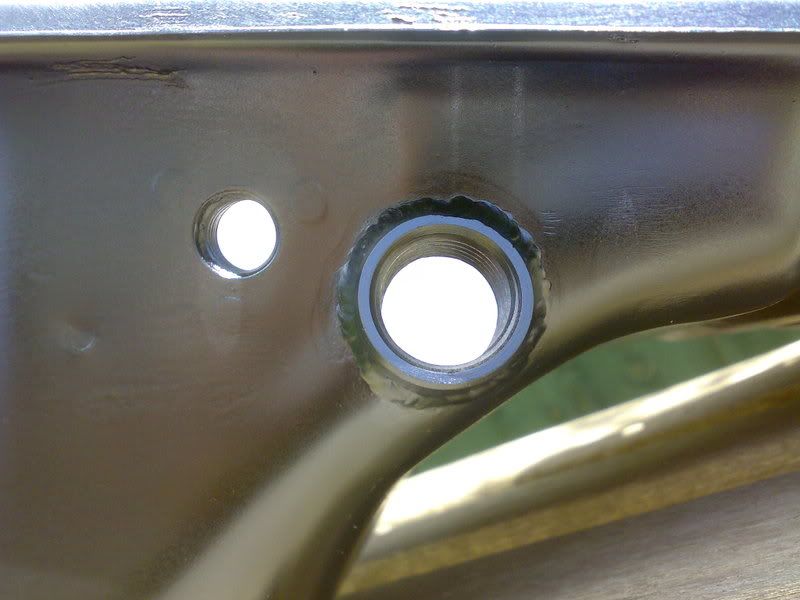

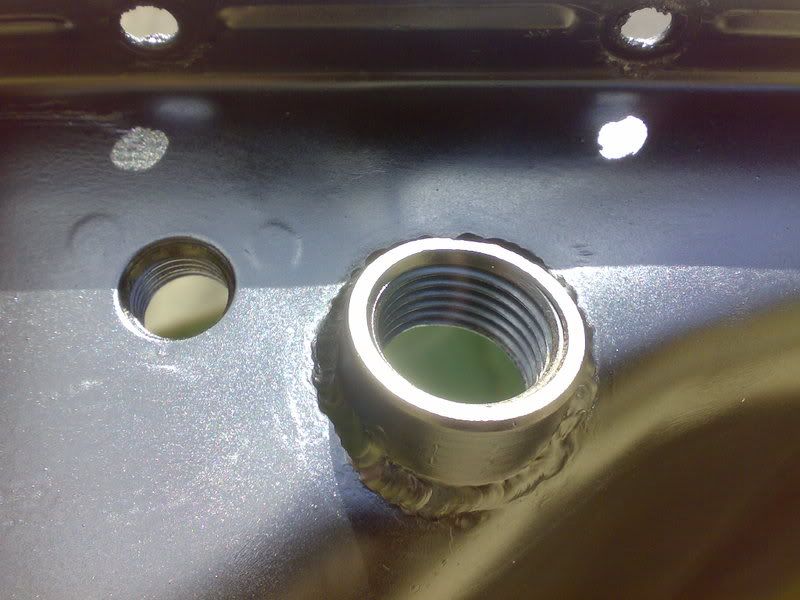

This is how i did mine, plenty big!!

[trd3sg]

DOHC 20 - nice work

if you dont mind me asking, is your motor running in FWD format?

If so, where did you take you're oil feed for the turbo from?

Thanks

[IN 05 NT]

wouldnt yo9u just tap into the oil pressure switch/sender ?

[feral4mr2]

Gunna be real biatch running an exhaust of the turbo mounted like that

cheers Chuck.

and why's that? both the turbo's in my aw11's face that way (though mounted higher).




i have 5/8" oil return lines, though i prefer to have them come into the sump higher than DOHC20's. (on a aw11 oil would pour out that hole if you had to remove the oil return pipe while up on ramps with a full sump of oil. not much fun. )..

["Z" UTE]

and why's that? both the turbo's in my aw11's face that way (though mounted higher).. )..

Total brain fart on my behalf, I always see these engines in RWD configuration, maybe because that is the last conversion I did.

Oil feed is simple, remove the oil prseeure switch, and screw in a "T" piece. Make sure not to hang the oil pressure switch off the "T" piece. Make up a flexible line and remote locate the switch. If you do hang the switch off the "T" piece, they tend to snap, and you loose your oil.

Cheers Chuck.

[feral4mr2]

even better is to remove the oil pressure sender, put flexible line from there to a remote mounted T peice that holds the oil pressure sender and flexible line to the turbo.
