ma61 help with wiring

**Azzamk2** · 21-09-2008, 06:25 PM

just put a 7m-ge into a ma61 and now onto the wiring i have already lenthend the alt wires and the easy stuff but im in need of the pinouts and what wire does what for the 2 yellow plugs that are under the glovebox in the ma61 one block style plug and other is a rectangular. any help would be good as i need to get this car going asap

**rob** · 21-09-2008, 09:36 PM

heaps of info on the net and on here did u search?

**Azzamk2** · 21-09-2008, 09:37 PM

yer ofcourse i did search but imma keep on looking

**CrUZida** · 23-09-2008, 11:17 AM

There is nothing on the net for this.

Its time for you to get a multimeter, a pencil, a piece of paper, and the original 5M-E engine loom.

With that you'll work out exactly what pins do what.

Its what the rest of us have done in the past, but unfortunately no one has ever fully documented it.

Andy's MA61 Supra site has some info, but from memory not everything.

**wilbo666** · 23-09-2008, 12:39 PM

From google and cs.com

(http://forums.celicasupra.com/showthread.php?t=22840)

Originally Posted by CJSREDPRA

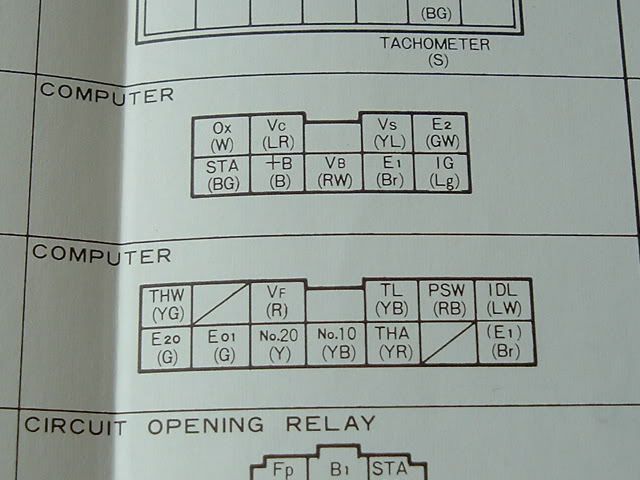

From the EFI manuals. 4ME ECU pinout: For clarity purposes, this is from the "connector plug" side, not the ECU side.

Cheers
Wilbo

**rob** · 23-09-2008, 01:15 PM

Originally Posted by CrUZida

There is nothing on the net for this.

not a step by step procedure no, but there are heaps wiring diagrams and a few sites that have snippets of info on the conversion.

**wilbo666** · 23-09-2008, 01:21 PM

Simply a pinout of the yellow MA61 body loom plug (the non-ecu one) is all that is really missing....

I don't understand why there isn't one around...

Then again, most of the things on it are pretty dang easy to find with a multimeter

Cheers
Wilbo
